Opamp

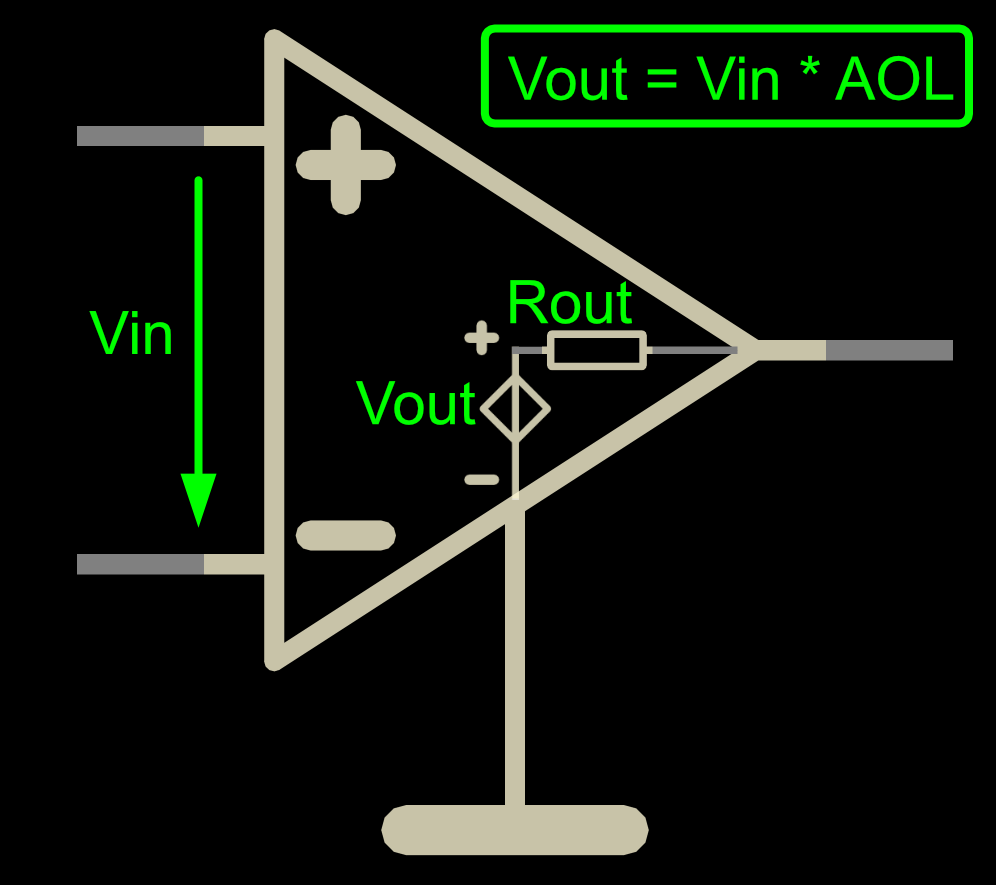

Opamps in CircuitShepherd are modeled by a voltage controlled voltage source (VCVS) and an output resistance. "AOL" (open-loop gain) and "Rout" (output resistance) are changeable properties. In case of AC-simulations the VCVS also has a frequency dependence defined by the "GBW" (gain-bandwidth product) and "Phase margin" properties.
